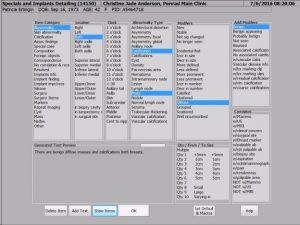

Expanded selection of items on Advance Special screen
Added ability to indicate any finding when located by clock location to reference a half hour increment.
Added ability to specify findings as “diffuse” and or “grouped”. Scattered distribution is non Birads preferred.
Added to abnormality type, “fat necrosis”, “focal asymmetry”, and “global asymmetry”.
Ability to reference any finding “in the biopsy cavity”, “in the lumpectomy cavity”, and “in the surgical site”.
Added to special case category to reference finding as “fat necrosis”.
Added to resolved category “due to tomographic imaging” when additional imaging resolved a finding.

Click to enlarge

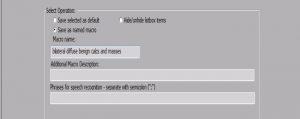

Macro capability added to Advance Specials screen, along with hide items

To create custom macros with data points and/or free text, select individual items on screen, next tap the Set Default & Macros button. Tap the Save as name macro button, label macro with identifiable expression.

When completed tap OK button to save. As macros accumulate, the order on saved macros selection list can be altered by tapping on macro to select, and tap on Up Down buttons to reposition.



Click to enlarge

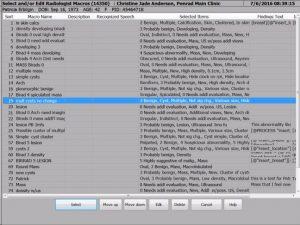

Macro selection on Advance Specials
After the first macro is created, a Macro button appears just beneath time display in upper right corner of screen. Tap Macro button to select macro. After macro selected, additional modifiers can be added, for example, clock location, quadrants, new, stable, etc.







Click to enlarge

To hide Items on Advance Specials screen
Tap Set Default & Macros button, then tap Hide/unhide listbox items button, click on items to hide in Select column. A Hide Old Birads button is available to hide non preferred Birads terminology. If access is needed to select hidden items, tap unlabeled button near select/preview window.

Missing some of the advance features available in PenRad? Schedule our Application Specialists to comeon-site and work with your staff and radiologists, so you can be assured you maximizing PenRad.
